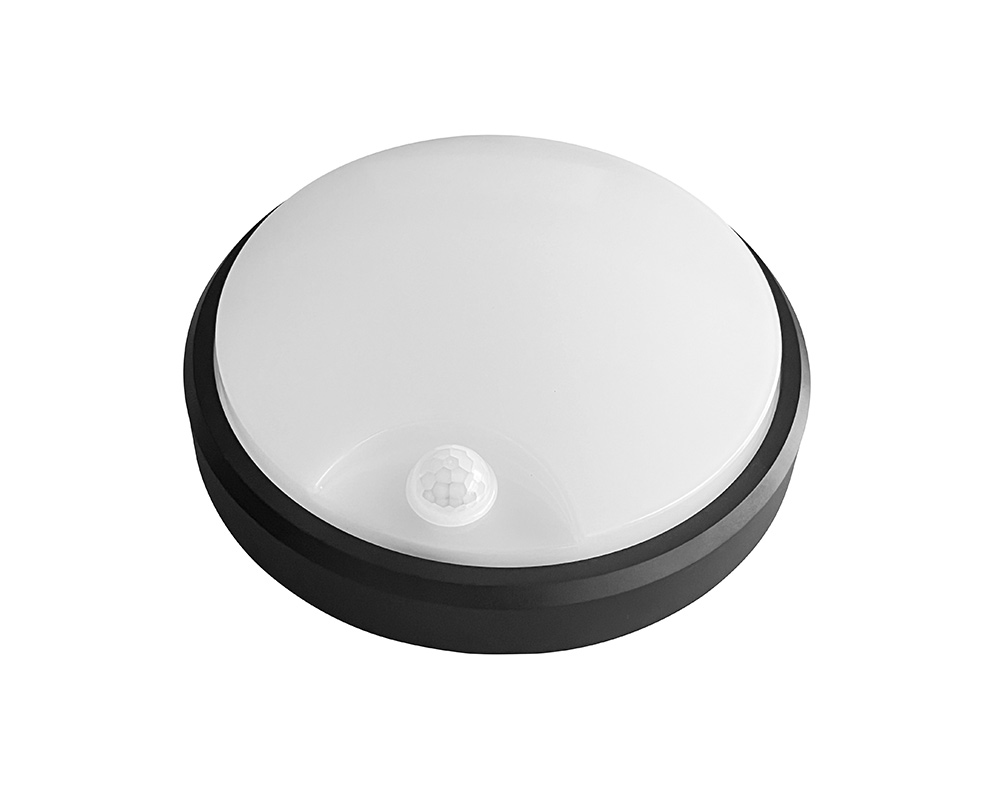

Polycarbonate construction strong and durable.
Available with White or Black bezel
Multiple low power LED array & optically optimised opal diffuser, ensures a soft, even lighting with no degradation of light output.
Multiple Watts 9W/12W/18W , CCT3 selectable with internal DIP switch 3000K/4000K/5000K
LED lifespan L70 50,000 hours
For commercial interior use in corridors, stairs, toilets and changing rooms
PIR sensor available
Technical datas:
| Model: | YGFC-R18-AS | YGFC-S18-AS |
| Type: | Standard | Standard |
| Color: | White/Black | White/Black |
| Voltage: | 220-240V/50-60Hz | 220-240V/50-60Hz |
| Power: | 9W/12W/18W (Multipule Watt) | 9W/12W/18W (Multipule Watt) |
| Colour Temp: | 3000/4000K6500K CCT3 selectable | 3000/4000K6500K CCT3 selectable |
| Luminaire Data: | 1100/1500/2000lm | 1100/1500/2000lm |
| Luminous Efficiency: | >120lm/W | >120lm/W |
| Product Size(mm): | 211*55 | 230*55*105 |
| Material (Main): | PC | PC |
| LED Data: | SMD2835 0.2W, SDCM < 6, CRI > 80 | SMD2835 0.2W, SDCM < 6, CRI > 80 |
| Warranty: | L70B50- 50,000 Hours, 5Years Warranty | L70B50- 50,000 Hours, 5Years Warranty |
| IP/IK: | IP65/IK10 | IP65/IK10 |
| Beam Angel: | 115° | 115° |
| Ambient Temp: | -20℃~+40℃ | -20℃~+40℃ |
| Certificates: | CE | CE |
| Remark: | White/Black- Two Trims will come with fitting | White/Black- Two Trims will come with fitting |
Light Distribution Curve:
Lux Distance Curve:
