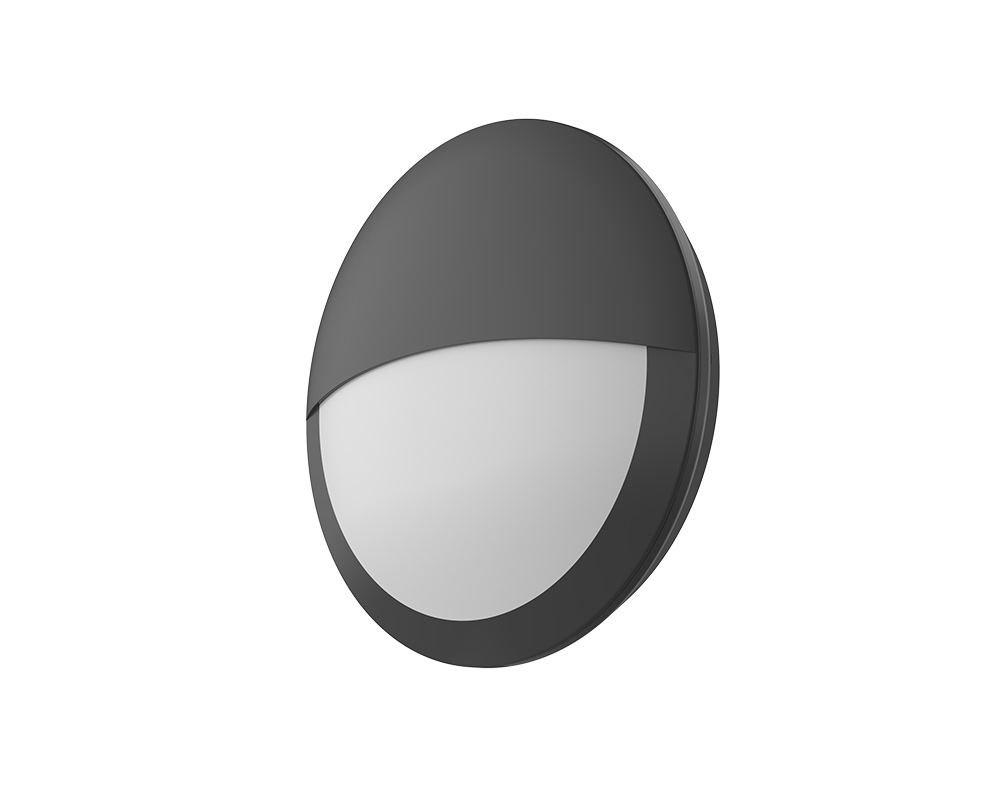

MELENA

Description

-- IP65 – IK10 Bulkhead
-- Polycarbonate opal diffuser and Base.
-- Piano-key terminal block with capacity for 3 x 1.5mm2 cable
for loop-in/loop-out.
-- Entry holes from 4 sides for easy wire connection,avoid re-wiring costs
-- Available with a full range of emergency, Microwave sensor options
-- Emergency maintained 3 hr versions available.
-- Multi- power options and Multi- color temperature options
-- 5Years warranty

Technical datas:

CodesCWS-300CWS-400
Input VoltageAC220-240V 50/60Hz
 Power (W):10-14-20W Selectable15-22-28W Selectable
DF>0.6>0.9
Efficiency140LM/W
LED0.5W 2835 128LED*20.5W 2835 180LED*2
 Light output L100 (lm):1450-2000-2500LM2000-3050-3800
CCT L100 (K):3000/4000/6500K
CRI L100:>80
L×W×H (mm):Φ300*85Φ400*95

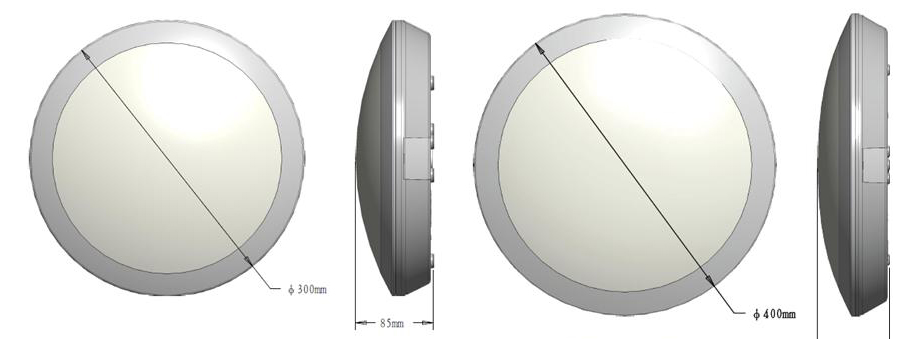

Size:

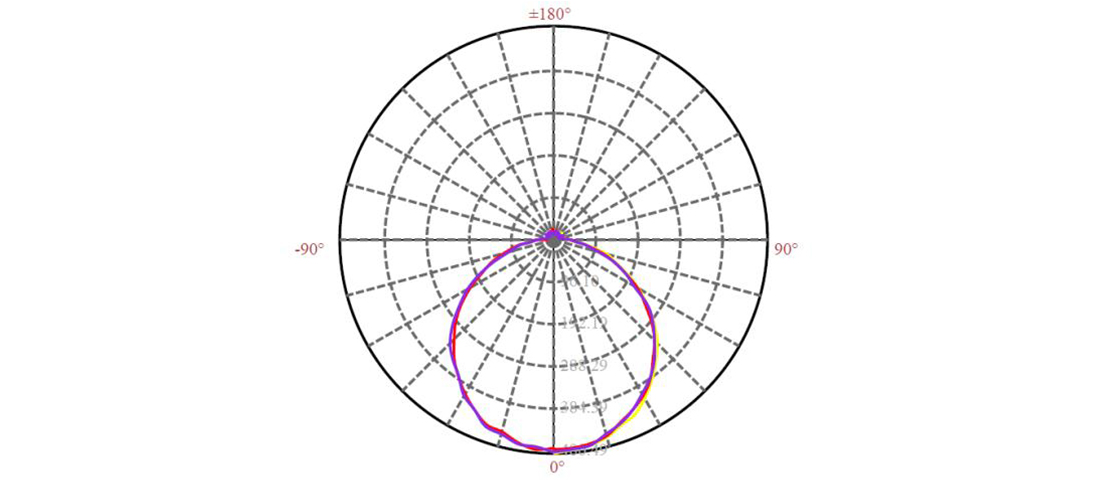

Light Distribution Curve:

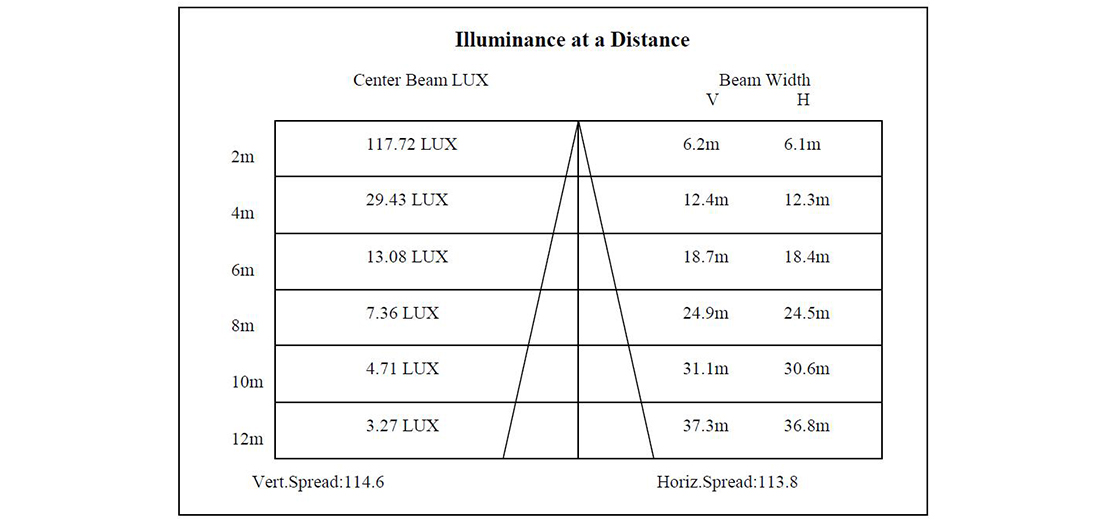

Lux Distance Curve:
